Transfers

Contents

• Xfer Cnt

• Token Xfer Cnt

• Xfer Mean Size

• Per Byte Xfer'd Mean Val, Adj (USD)

• ERC-20 Xfer Cnt

• ERC-721 Xfer Cnt

• ERC-1155 Xfer Cnt

Xfer Cnt

Definition

The sum count of transfers that interval.

Name	MetricID	Unit	Interval
Xfer Cnt	TxTfrCnt	Transfers	1 day

Details

• A transaction is comprised of one or more transfers between different entities. A single transaction may contain dozens of distinct transfers, which represent the movements of native units from one ledger entity to another distinct ledger entity. Only transfers that have a positive (non-zero) value are counted. Transfers have been colloquially referred to as "payments".

• For ETH, we do not count failed transactions or self-sends towards TxTfrCnt. We do count internal transfers and do not distinguish them from top-level transfers. One way to think of TxTfrCnt is to count each time ETH effectively changes hands (excluding payment of fees and new issuance)

Asset Details

• For SOL, we do not count failed transactions or self-sends towards TxTfrCnt. We do count internal transfers and do not distinguish them from top-level transfers. One way to think of TxTfrCnt is to count each time SOL effectively changes hands (excluding payment of fees and new issuance)

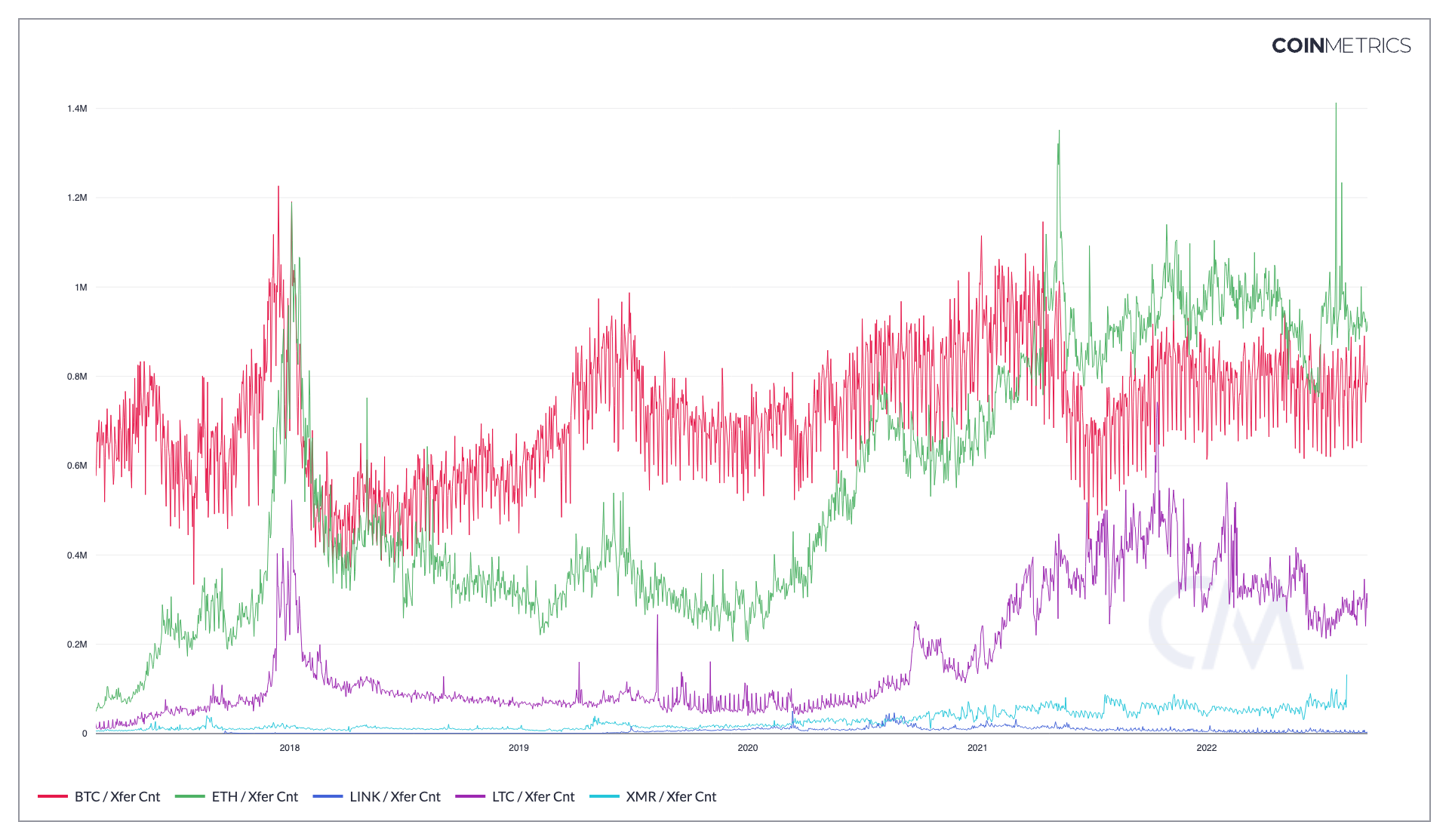

Chart

Source: CM Network Data Charts

Examples

Consider a single Bitcoin transaction that represents a company's payroll. The company broadcasting this transaction spends one input and generates 12 UTXOs, one for each of its employees. In this example, that transaction would entail 12 transfers.

Release History

• Release Version: NDP-EOD 1.0

Availability for Assets

Coin Metrics CoverageCoin Metrics Coverage

Token Xfer Cnt

Definition

The sum count of token transfers in that interval. Only non-zero transfers between two distinct addresses are counted.

Name	MetricID	Unit	Interval
Token Xfer Cnt	TxTfrTknCnt	Transfers	1 day

Asset-Specific Details

• For Ethereum, this metric counts all ERC-20 or ERC-721 contracts, as long as their transfers follow the ERC-20 or ERC-721 specification.

• For SOL, all tokens created by an official token program are considered.

Release History

• Version 4.2 of CM Network Data Pro Daily Macro (End of Day)

Availability for Assets

Coin Metrics CoverageCoin Metrics Coverage

Xfer Mean Size

Definition

The mean size (in bytes) per transfer that interval.

Name	MetricID	Unit	Interval
Xfer Mean Size	TxTfrMeanByte	Bytes	1 day, 1 block

Details

• Computed as BlkSizeByte / TxTfr

Release History

• Released in the 1.0 release of NDP

Availability for Assets

Coin Metrics CoverageCoin Metrics Coverage

Per Byte Xfer'd Mean Val, Adj (USD)

Definition

The mean USD value per byte transferred for all transfers that day removing noise and certain artifacts.

Name	MetricID	Unit	Interval
Per Byte Xfer'd Mean Val, Adj (USD)	TxTfrValAdjByte	USD	1 day

Details

• Computed as TxTfrValAdjNtv / BlkSizeByte

• This metric estimates the economical density of an asset.

Release History

• Released in the 1.0 release of NDP

Availability for Assets

Coin Metrics CoverageCoin Metrics Coverage

ERC-20 Xfer Cnt

Definition

The sum count of ERC-20 transfers in that interval. Only non-zero transfers between two distinct addresses are counted. Contracts that contain all of the following are considered to be ERC-20 contracts: the balanceOf function, the transfer function, and the Transfer event hash.

Name	MetricID	Unit	Interval
ERC-20 Xfer Cnt	TxTfrERC20Cnt	Transfers	1 day

Details

• This metric uses the ERC-20 specification Transfer event as the definition for ERC-20 transfer and only looks for transfers emitted by contracts detected as ERC-20 following the criteria outlined in Contracts, ERC-20, count.

• Full compliance with the ERC-20 standard is not required as only few ERC-20 tokens attain it. We therefore look for the bare minimum methods and events necessary for wallet integration of the token: balanceOf and transfer functions as well as the Transfer event. If a contract’s code has all of the following markers, it is considered to be ERC-20:

  • Signature of the balanceOf function: 6370a082311461

  • Signature of the transfer function: 63a9059cbb1461

  • Hash of the transfer event ddf252ad1be2c89b69c2b068fc378daa952ba7f163c4a11628f55a4df523b3ef

Asset-Specific Details

• This metric is only available for ETH and ETC.

Release History

• Version 4.3 of CM Network Data Pro Daily Macro (End of Day)

Availability for Assets

Coin Metrics CoverageCoin Metrics Coverage

ERC-721 Xfer Cnt

Definition

The sum count of ERC-721 transfers in that interval. Only transfers between two distinct addresses are counted. ERC-165 is used to determine a contract’s compliance with ERC-721.

Name	MetricID	Unit	Interval
ERC-721 Xfer Cnt	TxTfrERC721Cnt	Transfers	1 day

Details

• This metric uses the ERC-721 specification Transfer event as definition for ERC-721 transfer.

• ERC-721 contracts are detected if they implement the ERC-165-compatible interface defined in the ERC-721 specification using the procedure specified in the ERC-165 specification.

Asset-Specific Details

• This metric is only available for ETH and ETC.

Release History

• Version 4.3 of CM Network Data Pro Daily Macro (End of Day)

Availability for Assets

Coin Metrics CoverageCoin Metrics Coverage

ERC-1155 Xfer Cnt

Definition

The sum count of ERC-1155 transfers in that interval. Only transfers between two distinct addresses are counted. The ERC-1155 standard is an emerging standard for the issuance of both fungible and non-fungible tokens on Ethereum. As of this metric's release date, the standard has attained considerable traction in the ecosystem of Non-Fungible Tokens.

Name	MetricID	Unit	Interval
ERC-1155 Xfer Cnt	TxTfrERC1155Cnt	Transfers	1 day

Details

• This metric is calculated by monitoring the blockchain for ERC-1155 Transfer Events, as defined by the EIP-1155 Standard Specification.

• Like ERC-721 contracts, the activity of ERC-1155s is detected with the help of a secondary standard, ERC-165, which provides an interface for both 751 as well as 1155-compliant events.

Asset-Specific Details

• As this metric is tailored to the Ethereum ecosystem, it is only available for ETH .

Release History

• Released in Network Data Pro (NDP) version 5.1

Availability for Assets

Coin Metrics CoverageCoin Metrics Coverage

API Endpoints

Token Transaction metrics can be accessed using these endpoints:

• timeseries/asset-metrics

and by passing in the metric ID's TxTfr*, etc. in the metrics parameter.

Asset metrics

get

Returns requested metrics for specified assets.<br/><br/> Results for block by block metrics (1b frequency) are ordered by tuple (asset, height, block_hash), all other metrics are ordered by tuple (asset, time). You can change the sorting using sort query parameter.<br/><br/> Supported output formats are json (default) and csv, use format query parameter to override it.<br/> To fetch the next page of results use next_page_url JSON response field or x-next-page-url CSV HTTP header if present.<br/><br/> If multiple metrics are requested in the same time the strict policy for partially available metrics among requested ones is applied: <ul>

<li>missing metric name in the JSON response means that the metric is "not a supported metric" for the asset and frequency while some other requested metrics are supported.</li> <li>`null` value of the metric means "no data in the database" while some other requested metrics have data.</li> </ul>

Authorizations

Query parameters

assetsstring[]required

Comma separated list of assets.<br/> Use the /catalog-all/assets endpoint for the full list of supported assets or specify asterisk (*) in order to get metrics for all supported assets.

metricsstring[]required

Comma separated metrics to request time series data for.<br/> Information on all available metrics can be found on page https://docs.coinmetrics.io/info/metrics.<br/> Use the /catalog-all/metrics or /catalog-all/assets endpoint for the full list of supported metrics per asset.

Example: ["AdrActCnt","BlkHgt"]

frequencystring · default: 1d

Frequency of the metrics. Supported values are 1b (block by block), 1s (one second), 1m (one minute), 10m (ten minutes), 1h (one hour), 1d (one day), 1d-ny-close (one day at New York close time). Please refer to the /catalog/metrics endpoint for the full list.<br/> Use the /catalog-all/assets endpoint for the full list of supported frequencies per asset-metric pair.

Example: 1b

statusstring · enum · default: all

Which metric values do you want to see. Applicable only for "reviewable" metrics. You can find them in the /catalog/metrics endpoint.

Options: all, flash, reviewed, revised

start_timestring

Start of the time interval.<br/> This field refers to the time field in the response.<br/> Multiple formats of ISO 8601 are supported: 2006-01-20T00:00:00Z, 2006-01-20T00:00:00.000Z, 2006-01-20T00:00:00.123456Z, 2006-01-20T00:00:00.123456789Z, 2006-01-20, 20060120.<br/> Inclusive by default. Mutually exclusive with start_height and start_hash.<br/> UTC timezone by default. Z suffix is optional and timezone parameter has a priority over it.<br/> If start_time is omitted, response will include time series from the earliest time available.

end_timestring

End of the time interval.<br/> This field refers to the time field in the response.<br/> Multiple formats of ISO 8601 are supported: 2006-01-20T00:00:00Z, 2006-01-20T00:00:00.000Z, 2006-01-20T00:00:00.123456Z, 2006-01-20T00:00:00.123456789Z, 2006-01-20, 20060120.<br/> Inclusive by default. Mutually exclusive with end_height and end_hash.<br/> UTC timezone by default. Z suffix is optional and timezone parameter has a priority over it.<br/> If end_time is omitted, response will include time series up to the latest time available.

start_heightinteger · int64

The start height indicates the beginning block height for the set of data that are returned.<br/> Inclusive by default. Mutually exclusive with start_time and start_hash.

end_heightinteger · int64

The end height indicates the ending block height for the set of data that are returned.<br/> Inclusive by default. Mutually exclusive with end_time and end_hash.<br/> This parameter is disabled for Community users.

start_hashstring

The start hash indicates the beginning block height for the set of data that are returned.<br/> Inclusive by default. Mutually exclusive with start_time and start_height.

end_hashstring

The end hash indicates the ending block height for the set of data that are returned.<br/> Inclusive by default. Mutually exclusive with end_time and end_height.

start_inclusiveboolean · default: true

Inclusive or exclusive corresponding start_* parameters.

end_inclusiveboolean · default: true

Inclusive or exclusive corresponding end_* parameters.

min_confirmationsinteger · int32 · max: 99

Specifies how many blocks behind the chain tip block by block metrics (1b frequency) are based on. Default for btc is 2 and 99 for eth. For example, a min_confirmations of 0 means metrics are being calculated for the block at the tip of the chain (the latest block received by our node) whereas a min_confirmations of 6 means that metrics are being applied to the block that is 6 blocks behind the chain tip (i.e., the 7th block if the chain tip is block 1).

timezonestring · default: UTC

Timezone name for start_time and end_time timestamps.<br/> This parameter does not modify the output times, which are always UTC.<br/> Format is defined by TZ database.

Example: America/New_York

page_sizeinteger · int32 · min: 1 · max: 10000 · default: 100

Number of items per single page of results.<br/> The value of this parameter is ignored if the endpoint supports the format parameter and its value is set to json_stream.

paging_fromstring · enum · default: end

Where does the first page start, at the start of the interval or at the end.

Options: start, end

sortstring · enum · default: asset

How results will be sorted. Metrics with 1b frequency are sorted by (asset, height, block_hash) tuples by default. Metrics with other frequencies are sorted by (asset, time) by default. If you want to sort 1d metrics by (time, asset) you should choose time as value for the sort parameter.<br/> Sorting by time is useful if you request metrics for a set of assets.

Options: asset, height, time

limit_per_assetinteger · int32

How many entries per asset result should contain. For example, this combination of parameters assets=btc,eth&metrics=ReferenceRate&limit_per_asset=1 returns the latest ReferenceRate values for btc and eth.

prettyboolean · default: false

Human-readable formatting of JSON responses.

formatstring · enum · default: json

Format of the response.

Options: json, csv

null_as_zeroboolean · default: false

Nulls are represented as zeros in the response.

next_page_tokenstring

Token for receiving the results from the next page of a query.<br/> Should not be used directly. To iterate through pages just use next_page_url response field.

ignore_forbidden_errorsboolean · default: false

Ignore HTTP 403 Forbidden errors

ignore_unsupported_errorsboolean · default: false

Ignore errors for unsupported assets, metrics or frequencies.

Responses

application/jsontext/csv

application/json

application/json

application/json

200

400

401

403

414

200

application/json

text/csv

application/json

Example of a message with daily metrics.

Example of a message with block by block metrics.

Example of a message with 1s metrics.

Example of a message with daily metrics.

{
  "data": [
    {
      "asset": "btc",
      "time": "2020-02-29T00:00:00.000000000Z",
      "PriceUSD": "8582.09029964933",
      "SplyBMXNtv": "283220.10827406",
      "SplyBMXNtv-status": "reviewed",
      "SplyBMXNtv-status-time": "2020-03-01T09:59:13.847251000Z"
    },
    {
      "asset": "btc",
      "time": "2020-03-01T00:00:00.000000000Z",
      "PriceUSD": "8541.77389392169",
      "SplyBMXNtv": "284691.32323907",
      "SplyBMXNtv-status": "reviewed",
      "SplyBMXNtv-status-time": "2020-03-02T14:00:02.622168000Z"
    }
  ],
  "next_page_token": "0.MjAyMC0wNi0wN1QwMDowMDowMFo,MjAyMC0wNi0wN1QwMDowMDowMFo",
  "next_page_url": "https://api.coinmetrics.io/v4/timeseries/asset-metrics?api_key=<your_key>&pretty=true&assets=btc&metrics=SplyBMXNtv,PriceUSD&page_size=2&next_page_token=0.MjAyMC0wNi0wN1QwMDowMDowMFo,MjAyMC0wNi0wN1QwMDowMDowMFo"
}

Time series of metrics for an asset.

Shell

curl --compressed "https://api.coinmetrics.io/v4/timeseries/asset-metrics?metrics=TxTfrERC20Cnt&assets=eth&pretty=true&api_key=<your_key>"

Python

import requests
response = requests.get('https://api.coinmetrics.io/v4/timeseries/asset-metrics?metrics=TxTfrERC20Cnt&assets=eth&pretty=true&api_key=<your_key>').json()
print(response)

Python Client

from coinmetrics.api_client import CoinMetricsClient

api_key = "<API_KEY>"
client = CoinMetricsClient(api_key)

print(
    client.get_asset_metrics(
        metrics="TxTfrERC20Cnt",
        assets="eth",
    ).to_dataframe()
)
